| MECHANICAL SEALS |

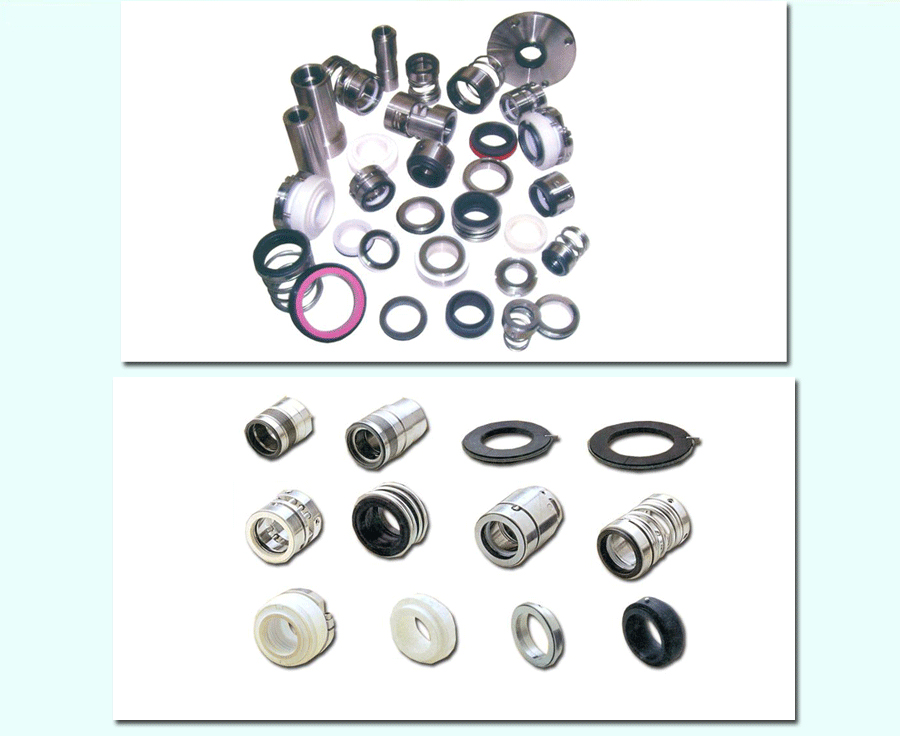

Our range of seals includes the following version : -
* Rubber Bellow Seals for water application.
* Single Spring and Multiple-spring Mechanical seal with various Face combination like carbon, Silicon Carbide, Tungsten Carbide, Ceramic Stellite Ni-Resist etc.
* Teflon Bellow Seals for acid applications.
* Cartridge Seals for pumps, Reactions vessels, Agitators and Mixers.
* Rubber Bellow Seals for water application.
* Single Spring and Multiple-spring Mechanical seal with various Face combination like carbon, Silicon Carbide, Tungsten Carbide, Ceramic Stellite Ni-Resist etc.
* Teflon Bellow Seals for acid applications.
* Cartridge Seals for pumps, Reactions vessels, Agitators and Mixers.
| MULTIPLE SPRING SEAL MSS-8A (unbalanced seal) OPERATING PARAMETER :- Shaft Dia : 16 to 150 mm Pressure : 25kg/cm² Temperature : 60° C to 210° C Shaft Speed : 4000 RPM EQUIVALENT TO :- *Leakproof :90U, 90B, 95B, 95U, 80U, 80B,85U *John Crane :9, 9B, 8-1T, 8B-1T, 9T, 9BT *Sealol :507.5, 503.5, 508.5, 504.5 *Dura :HPTO, RO, PTO, ROTT, PT |
MSS-8B (Balanced) APPLICATIONS :- Chemical pumps for Fertilizer & Petrochemical Industries. These type of seals are designed to handle clear fluid, hence easy in installation & maintenance Multi spring design ensures uniform pressure on seal face under all operating conditions. |
| SSS-1 SINGLE SPRING SEAL(unbalanced Seals) OPERATING PARAMETER :- Shaft Dia : 10 to 80 mm Pressure : 16kg/cm² Temperature : 20° C to 110° C Shaft Speed : 3000 RPM EQUIVALENT TO : - *Burgmann : MG-1, MG-12 |
APPLICATION : - Agriculture Industrial, Commercial, Waste Water & Sewage Single Spring Seals designed for general non critical application it is low in cost & easy in maintenance. |
| SINGLE SPRING SEAL :- SSS-16A (unbalanced seal) OPERATING PARAMETER :- Shaft Dia : 10 to 80 mm Pressure : 10kg/cm² Temperature : 30° C to 180° C Shaft Speed :3000 RPM EQUIVALENT TO : - * Burgmann : M2N, M3N, M32 * Leak Proof : 2U * Dura : CRO and FRO |
SSS-16 B APPLICATION :- Agriculture, Industrial, Commercial, Waste Water & Sewage. It is single coil spring with a conical unidirectional design. These seals have a self driving spring it is available in different face material with other combination according to the application. |
| METAL BELLOW SEAL : - MBS-31 OPERATING PARAMETER :- Shaft Dia : 24 to 100 mm Pressure : 15kg/cm² Temperature : -20° C to 350° C Shaft Speed : 4500 RPM EQUIVALENT TO :- * Burgmann : MFLWT8, MFLW80 * Leakproof : 60 |
APPLICATION : - Thermic Fluid These seals are designed for an extreme range of temperature and high viscocity media. There is no dynamic O-ring and therefore a Bellow seal will never hang up. An optimum sealing performance is achieved by a combination of state of the art welding Technology & olptimum bellow designs. |
| SINGLE SPRING SEAL : - SSS-12A (unbalanced) OPERATING PARAMETER :- Shaft Dia : 16 to 150 mm Pressure : 25kg/cm² Temperature : -45° C to 180° C Shaft Speed : 3000 RPM EQUIVALENT TO : - * Leak proof : 70U, 70B, 75U, 75B * John Crane : 89UO, 89Bo, 89UV, 89BV * Sealol : 1507, 1508 * Dura : ARO, ARTO, ARO-TT, APT |
SSS-12B (unbalanced) APPLICATION :- Slurries, Sludges, Sewage This type of seal designed to handle Liquids of varying contamination including slurries, sewage, Viscous or abrassive media etc. Different seal faces available according to the application. |
| SINGLE SPRING SEAL : - SSS-21 (unbalanced) OPERATING PARAMETER :- Shaft Dia : 16 to 80 mm Pressure : 10kg/cm² Temperature : -20° C to 200° C Shaft Speed : 4500 RPM EQUIVALENT TO : - * Leakproof : 43 * Sealol : 73 * Dura : ARO, FLAXI BOX-R & U |
APPLICATION : - It has single coil spring duck type rubber bellow seal which is very useful for self alignment in shaft motion it is simple in installation & maintenance. |
| SINGLE SEAL : - SS-18 OPERATING PARAMETER :- Shaft Dia : 19 to 100 mm Pressure : 16kg/cm² Temperature : -45° C to 120° C Shaft Speed : 3600 RPM EQUIVALENT TO :- * Leakproof : 20M, 20R1 * John Crane : 20, 20R * Sealol : 650,652 * Burgmann : TF FLEXI BOX-K |
APPLICATION :- Acids, Alklai, Strong Oxidising This series is designed to handle extremely corrosive fluids. All seal components that come in contact with fluid are chemically inert materials like PTFE, GFT & CERAMIC. These type of seals are mounted externally so that the metal parts are kept out of contact with media. |
MATERIAL OF CONSTRUCTION |
| Seal face : - Corbon resin impreginated Tungsten Cabide, Cobalt Bonded. Tungsten Carbide, Nickel Bonded. Silicon Carbide High Aluminium Ceramic(99.5) Special Chrome casting. Glass filled PTFE, Chrome Oxide. Phosphorus Bronze. Stellite. Ni-resist. |
Secondary Sealing : - Viton Silicon Rubber Neoprene Rubber Perbunan Rubber PTFE Glass filledd PTFE (GFT) Carbon filled PTFE (CFT) Pure Graphite Kalrez FEP Klingrite |
Spring and Hardware : - Carbon steel Chrome steel Chrome Nickle steel Molybdenum steel Hastelloy B Hastelloy C Monel Metal Alloy 20 Titanium Inconel |
